Dry Cell Compatible Ni-MH Batteries

Features

Dry cell compatible form factor

Dry cell compatible Ni-MH batteries can be used in most equipment that use dry cells.

Cost effectiveness

Economical batteries with less waste due to being rechargeable unlike a dry cell.

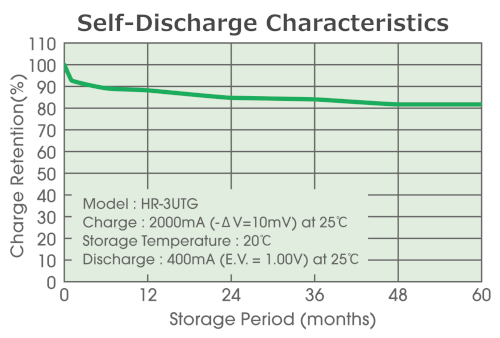

Low self-discharge

Ready to use after purchasing, can be stored as emergency supplies.

Applications

·For automatic blood pressure monitors, remote controllers, wireless mice, flashlights, tranceivers, wireless keyboards, etc.
·Dry cell compatible Ni-MH batteries can also be used for business purposes other than those listed above.
·It is necessary to confirm the application and battery usage conditions to sell dry cell compatible Ni-MH batteries.
Please contact us for more details.

digital cameras, audio equipment, remote controls, clocks, radio-controlled hobby items, amateur 2-way radio etc.

Specifications

Model		HR-4UQ	HR-4UTG Long Life Type	HR-4UTG	HR-4UTGX	HR-3UQ	HR-3UTG Long Life Type	HR-3UTG	HR-3UTGX
Nominal Voltage		1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V
Typical Capacity※1		600mAh	800mAh	800mAh	1000mAh	1000mAh	2000mAh	2000mAh	2620mAh
Minimum Capacity※2		550mAh	750mAh	750mAh	930mAh	950mAh	1900mAh	1900mAh	2500mAh
Quick- Charge※3	Current	600mA	800mA	800mA	1000mA	1000mA	2000mA	2000mA	2620mA
Quick- Charge※3	Time	1.1h	1.1h	1.1h	1.1h	1.1h	1.1h	1.1h	1.1h
Dimensions (incl.tube)※4	Diameter	10.5mm	10.5mm	10.5mm	10.5mm	14.2mm	14.35mm	14.35mm	14.5mm
Dimensions (incl.tube)※4	Height	44.5mm	44.5mm	44.5mm	44.5mm	50.4mm	50.4mm	50.4mm	50.4mm
Approx. Weight		11g	13g	13g	13g	19g	27g	27g	32g
Data sheet

※1:Typical capacity when being discharged at 0.2lt until the voltage reaches to 1.00V within 1 hour after a single cell being charged for 16 hors at 0.1lt.
※2:Minimum capacity when being discharged at 0.2lt until the voltage reaches to 1.00V within 1 hour after a single cell being charged for 16 hors at 0.1lt.
※3:Consult FDK according to conditions of use.
※4:Including label/heat shrink tube.

The contents of this catalogue are not guaranteed.
