Features

• Designed for a long service life of over 15 years, ensuring stable and reliable power supply.
• Improved cost-effectiveness through the use of a state-of-the-art high-efficiency converter.
• Corrosion resistance achieved through an environmentally conscious cooling separation structure.
• Greater system design flexibility enabled by parallel redundancy operation.
• Enhanced safety and ease of maintenance through a highly reliable design.
• Comes with a dedicated shelf for 19-inch rack mounting.

Specifications

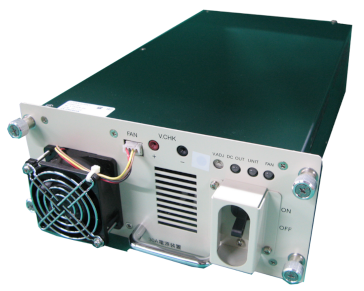

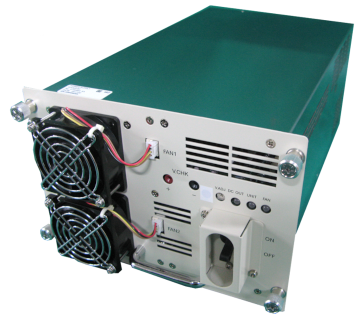

Model	PJA921-60	PJA922-60
Input Voltage	AC100V(Single-phase) AC200V(Single/Three-phase)	AC200V(Single/Three-phase)
Output Voltage	DC+40.8~ +55.2V (Selectable)	DC+40.8~ +55.2V (Selectable)
Max Output Current	30A	50A
Efficiency	≥90%(at AC200V)	≥90%(AC200V)
Operating Temperature	-10~45°C	-10~45°C
Operating Humidity	45~90%	45~90%
Hold-up Time	≥20milliseconds	≥20milliseconds
Protection Circuits	Overvoltage, Overcurrent, Internal temperature abnormality	Overvoltage, Overcurrent, Internal temperature abnormality
Dielectric Strength	AC2000V (between primary and secondary)	AC2000V (between primary and secondary)
Surge Withstand Voltage	2kV	2kV
EMI Compliance	VCCI Class A	VCCI Class A
Cooling Method	Forced air cooling	Forced air cooling
