HYDROGEN
STORAGE ALLOYS
Hydrogen storage alloys offer a more compact and safer way to store hydrogen compared to high-pressure or liquid hydrogen systems. They can absorb and release hydrogen safely at room temperature and normal pressure.
With years of experience in battery development, FDK uses its technology to offer a range of hydrogen storage alloys for different storage needs.

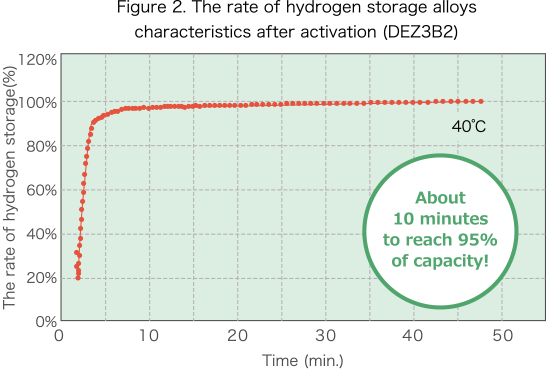

Our hydrogen storage alloys are easy to activate and can quickly release hydrogen. Additionally, they are not subject to the High Pressure Gas Safety Act when stored. *When the stored pressure is less than 1MPa.
AB5 type alloy
AB5-type alloy is known for being user-friendly, with features such as easy activation and fast reaction rates.
Specification table (Model example)
| Model | Type | Under 20°C environment | Storage pressure |
Applications | ||
|---|---|---|---|---|---|---|
| Hydrogen storage capacity |
Equilibrium pressure | |||||
| Absorption | Desorption | |||||
| (wt.%)Max | (MPa)wt.%=0.8 | (MPa)wt.%=0.8 | ||||
| ZZ03 | Standard | 1.54 | 0.73 | 0.65 | ＜1MPa | Storage  |
| ZZ05 | High capacity |
1.58 | 0.45 | 0.39 | ＜1MPa | Mobilities  |

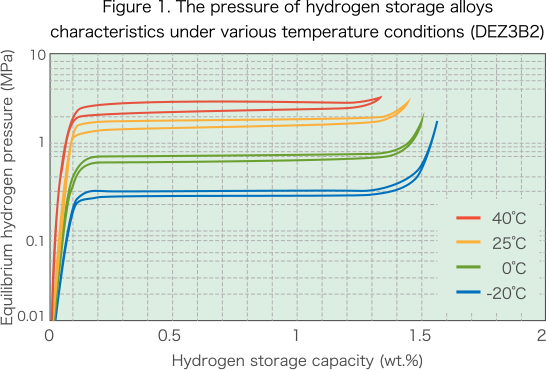

| DEZ3B2 | High pressure |
1.48 | 1.58 | 1.32 | ＞1MPa | Storage |
> 5000
cycles
Hydrogen storage alloys can be customized as your requests, e.g. equilibrium pressure adjustment.
AB2 type alloy
AB2 alloy has a large hydrogen storage capacity and is suitable for applications which are required for a long run time.
Specification table (Model example)
| Model | Type | Under 20°C environment | Storage pressure |
Applications | ||
|---|---|---|---|---|---|---|
|
Hydrogen storage capacity |
Equilibrium pressure | |||||
| Absorption | Desorption | |||||
| (wt.%)Max | (MPa)wt.%=0.8 | (MPa)wt.%=0.8 | ||||
| BT4H1 | Standard | 1.81 | 1.00 | 0.90 | (Tentative) |
Strage・ Mobilities  |
The contents of this homepage are not guaranteed.
We provide high-quality alloys tailored to customer needs, backed by many years of experience.
Product Development
With many years of development experience, we have extensive knowledge in adjusting the equilibrium pressure of alloys. We also tailor alloy characteristics to meet customer needs.
Manufacturing
Technology
Since 2001, we have been manufacturing hydrogen storage alloys using technologies that help ensure product uniformity. We also offer a range of particle sizes and packaging options to meet different needs.
Quality Control
To meet the strict quality requirements of our customers worldwide, we have established a rigorous quality control system. This includes in-house evaluation of ingredients, properties, and characteristics of all raw materials, intermediate products, and finished lots.
