Alkaline manganese Batteries
When used correctly, alkaline manganese battery provide a safe and dependable source of power. However, if they are misused or abused, leakage, heating or in extreme case, explosion may result. Therefore pay attention to next point.
1. Hazard of Alkaline manganese battery
- Take care not to touch the chemicals and electrolyte in batteries directly. Since alkaline solution is used in this battery system, there are risks of not only damage of cloth and sore due to adhesion of the solution, but of loss of eyesight if the solution gets into the eye.
*** In such an emergency case that the solution gets into the eye, wash
it immediately with water and receive medical treatment of doctor.
*** When the solution adheres to the skin and/or clothes, wash it with
water and consult a doctor.
- The battery equips the mechanism that release excessive internal pressure to preclude explosion. In case of charge, short-circuit and overdischarge of batteries, the internal pressure may rise abnormally and result in electrolyte leakage by venting. However, the vent mechanism may not work normally depend on circumstances and result in explosion in extreme case.
- The battery heats by short-circuit and the temperature of the battery surface may rise above 100℃.
2. Precautions during handling of batteries
- Always take care to insert batteries correctly with regard to polarity(+ and -), marked on the battery and the equipment. Batteries which are incorrectly placed into equipment may be short-circuit, or charged. This can result in a rapid temperature rise and venting causing leakage and explosion.
- Do not short-circuit batteries. When the positive(+) and negative(-) terminals of a battery are in direct contact with each other, the battery becomes short-circuited. For example, batteries lying on top of each other or mixed together, can be short-circuited. If short-circuited, an excess current flows instantaneously, and this current may cause risks of electrolyte leakage, explosion, etc. due to leakage of battery structure resulted from the heat so generated.
- Do not charge batteries. The batteries are not manufactured to allow charging, therefore, electrolyte
leakage and/or damage may occur if charged. If gas is produced abnormally
inside the cell by charging, the internal pressure rises and the pressure
may result in electrolyte leakage and/or damage of cell. If the charging
current is excessively large, much gas generates and there is risk of cell
explosion. In the case of charging unused cell, the rate of occurrence
of electrolyte leakage, damage, explosion, etc. increases, therefore, attention
shall be paid.
- Do not overdischarge batteries. When a battery is left being connected with the electrical circuit (due
to forgetting to switch off or the like) after the equipment does not work
normally, the consumption of energy is continued inside the battery, the
battery becomes overdischarged state, generates gases in its inside and
may cause electrolyte leakage or explosion. When two or more batteries
are connected for service and the batteries are overdischarged, the battery
voltage may become zero V or below (polarity change) and such phenomenon
further promote electrolyte leakage and explosion.
- Do not mix batteries.
When replacing batteries, replace all of them at the same time with new batteries of the same brand and type. When batteries of different kinds are used together, or new and old batteries are used together, some batteries may be overdischarged due to a difference of voltage or capacity. This can result in leakage and explosion.
- Exhausted batteries should be immediately removed from the equipment
and disposed of. When discharged batteries are kept in the equipment for a long time, electrolyte
leakage may occur causing damage to the appliance.
- Do not heat batteries. If batteries are heated, the resin part used in batteries melts
and deforms due to the temperature rise, and electrolyte leakage and explosion may occur.
- Do not directly solder batteries. When a battery is directly soldered, it may be damaged by heat. This
may result in leakage, explosion, etc.
- Do not disassemble batteries. Unreasonable disassembling of a battery may result in such risks as injury
of the fingers, damage of eye and skin due to scattered chemicals inside
- Do not deform batteries. Batteries should not be dropped, crushed, punctured, or otherwise mutilated.
Such abuse may result in leakage, heat generation or explosion.
- Do not dispose of batteries in fire. When batteries are disposed of in fire, the heat build-up may cause explosion.
- Do not allow children to replace batteries without adult supervision.
- Keep batteries out of the reach of children. Keep batteries which are considered
swallowable out of the reach of children. Incase of ingestion of a cell or battery, the person involved should seek medical assistance promptly.
- Do not modify batteries. Modification to a battery, may result in blockage of the safety
vent mechanism and subsequent explosion.
- Store unused batteries in their original packaging and keep them away
from metal objects which may short-circuit them.
- Remove discharged batteries from equipment. Remove batteries immediately from equipment which has ceased to function
satisfactorily, or when a long period of disuse is anticipated (e.g. video-cameras,
photoflash, etc.). The battery that has been partially or completely exhausted
may be more prone to leak than one that is unused.
3. Precautions during handling, transportation, display, storage, and disposal
- Avoid rough handling of battery cartons. Rough handling of battery cartons may result in battery damage and impaired
electrical performance and may result in leakage, explosion or heat generation.
- Battery cartons should not be piled up in several layers (or should
not exceed a specified height). If too many battery cartons are piled up, batteries in lowest cartons
may be deformed and electrolyte leakage may occur. As general guide, this
height should not exceed 1.5 m for cardboard packs.
- Batteries shall be stored in well-ventilated, dry and cool conditions.
Storage at high temperature and high humidity enhances deterioration of
the battery performance and promotes electrolyte leakage. For normal storage,
the temperature should be between +10℃ and +25℃ and never exceed +30℃.
Extremes of humidity (over 95% RH for example) for sustained periods should
be avoid since they are detrimental to both batteries and packing. Batteries
should therefore not be stored next to radiators or boilers nor in direct
- In the storage in warehouse or the display in storefront, do not place
batteries in a place exposed to direct sunshine for a long time or splashed
by rain water. Exposure to a high temperature increases deterioration of performances and facilitates electrolyte leakage. When batteries get wet, their insulation resistance decreases, self-discharge may occur and rust may be generated.
- Do not mix unpacked batteries so as to avoid mechanical damage and/or
short-circuit among each other. When mixed together, batteries may be subjected to physical damage or heat generation resulting from external short circuit. Leakage and/or explosion may then occur. To avoid these possible hazards, batteries should be kept in their packaging until required for use.
- In distribution process such as transportation, display and storage,
carry out the first in and first out and take care to avoid storage for
a long period.
- Batteries may be disposed of via the communal refuse arrangements provided
that no local rules to the contrary exist. At disposal of batteries, insulate terminal parts by winding with tape since external short circuit may occur due to the shape of terminals in 9V square type batteries.
4. Battery compartment guidelines
- Design compartments so that batteries are easily inserted and do not
fall out, due to slight shock or the like.
- Design compartments to prevent easy access to the batteries by young
- Consider the battery dimensions and tolerance when designing the battery
- Clearly indicate the type of battery to use, the correct polarity alignment
and directions for insertion. Further consider the marking of kind (battery
system), type, nominal designation shape, nominal voltage and number of
- Although batteries are very much improved regarding their resistance
to leakage, it can still occur occasionally. When the battery compartment
cannot be completely isolated from the equipment, it should be positioned
so as to minimize possible damage.
- To overcome the problems associated with the reversed placement of a
battery, consideration should be given at the design stage to ensure that
batteries cannot be installed incorrectly or, if so installed, will not
make electrical contact.
- Only the battery terminals should physically contact the electric circuit.
- Battery compartments should be electrically insulated from the electric
circuit and positioned so as to minimize possible damage and/or risk of
- Battery compartments should be designed to allow the gas generated from
batteries to escape.
- Locate the battery compartment on a place apart from the heat source
of the equipment as far as possible.
- When an alternative external power supply is utilized, design the system
so that the batteries are not charged. Provide a protective circuit to
ensure the prevention of charge of batteries.
- In order to avoid the possibility of short circuits, it is essential
that no part of the equipment circuitry (including conductive rivets or
screws used to secure the battery contacts, etc.) is allowed to contact
the battery case/jacket.
- Precautions during handling of batteries should be described in the
handbook of the appliance.
Lithium batteries contain intlammable materials such as lithium, organic solvent and other chemicals.
Mishandling may cause injuries or fires.
To prevent these, the following precautions should be observed.
- Do not short-circuit positive(+) and negative(-) terminals of the batteries (for example, by connectiong them with metal).
- Do not pile up or jumble up the batteries.
- Do not heat the batteries.
- Do not dispose of the batteries in fire.
- Do not disassemble the batteries.
- Do not recharge the batteries.
- Do not directly solder the batteries.
- Insert the batteries with polarity (+)(-) correcty.
- Keep battery out of reach of children and in original package until ready to use. If infant happens to swallow the battery, consult a doctor immediately.
- In case of eye contact with the battery electrolyte, immediately flush eyes thoroughly with water, and consult a doctor.
- In case the battery electrolyte happen to come into mouth, gargle well enough and consult a doctor immediately.
- Keep away from fire if battery has leskage or odor to prevent fire hazard.

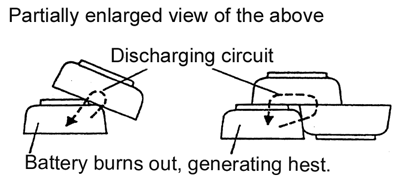

- Dispose of used batteries promptly. When the battery is disposed, isolate positive(+) and negative(-) terminals of the battery to avoid those terminals touch each other.
Mutual contact of batteries can from discharging circuit, resulting in a risk of generation of heat, explosion, or combustion.
- Do not mix the used battery together with the new battery or different type of batteries.
- Avoid storing the batteries under high temperature, high humidity, or direct sunlight.
- Avoid contact with water.
- Do not drop, apply excessive damage or deform the battery.
Please read and observe the following precautions thoroughly.
Improper battery handling may cause leakage, heating, or explosion or of the battery, which may lead to injury or product failure.
- Keep away from infants. If infant happens to swallow the battery, consult a doctor immediately.
- Do not heat or dispose in fire or water. Do not modify or disassemble the
battery.It may damage the insulator, and may cause, heating, leakage or
- In case of eye contact with the battery electrolyte, immediately flush
eyes thoroughly with water, and consult a doctor.
- In case the battery electrolyte happen to come into mouth, gargle well
enough and consult a doctor immediately.
- In case of skin or clothing contact with the battery electrolyte, remove
contaminated clothing and wash skin with soap and lots of clean water.
- Do not connect positive(+) and negative(-) with a wire and do not store
/ carry with metal objects such as necklace or hair pin, or the battery
may cause short-circuit and very high current flows momentarily through
the battery and heat generates. Consequently, the battery may be damaged,
causing leakage or explosion.
- This cell is not designed as rechargeable battery. Charging of this type
of battery may cause damage of insulator or internal structure. Consequently,
the battery may cause leakage, heat generation or explosion.
- Insert the batteries (+)(-) correctly. Erroneous insertion of the batteries
may result in battery short-circuiting depending on types of devices. Also,
it will cause leakage, heat generation, explosion.
- Do not mix the used battery together with the new battery or different
type of batteries. When batteries of different voltage and type are mixed
and used, the battery may cause leakage, heat generation or explosion.
- When life of a battery is completed, remove it from the device immediately.
If exhausted battery is left in the device for long period, the battery
may cause damage of the device, leakage, heat generation or explosion due
to gas generated from the battery.
- When a device is not used for long period, remove a battery from the device.
The battery may cause damage of the device or electrolyte leakage due to
gas generated from the battery.
- Do not solder the battery directly. Excessive heating may cause deformation
of the battery components, which may lead to the battery swelling, leakage
- Do not store or use in the location where the battery is exposed to sunlight
or in the car under direct sun rats. The battery may cause leakage, heat
generation or explosion.
- Do not store the battery in high temperature and high humidity location
and where the battery is exposed to sunlight to avoid performance deterioration,
swelling or leakage, of the battery.
- Do not wet a battery with water. The battery may cause heat generation.
- In certain devices, (+)(-) terminal may contact metallic part of the devices
at battery mounting point, careful attention is necessary to avoid short-circuit
when a battery is mounted into the device.
- Do not drop, apply excessive impact. The battery may cause leakage, heat
generation or explosion.
- In certain devices or uses, the specification or characteristics may not
be applicable. Use an proper battery correctly in accordance with handling
caution of the devices.
- Store the unused battery in its original packaging.
- Dispose the battery after isolating positive(+) and negative(-) terminals
of the battery to avoid those terminals touch each other. Keep away from
metal or other conductive materials. Jumbling the batteries of direct contact
with positive(+) and negative(-) terminals and metal or other conductive
materials may cause short-circuit.
- Dispose the battery in accordance with applicable federal, state and local
- Product specification and appearance are subject to change for improvement
without further notice.
- Data and dimensions are for descriptive purposes only and are not intended to make or imply any guarantee or warranty.
For further details, please contact sales department at FDK office.
